Fire Testing DIN4102
Wibe Cable Ladders are certified according to DIN4102-12 for fire resistance E30, E60 and E90
The longer the installation is resistant to fire, the longer the electric system will be able to operate normally. Wibe products with E30, E60 and E90 certification help to protect life and property in the event of a fire. The well-proven, reliable system will prolong the access to critical emergency services, such as fire suppression systems, emergency lighting, ventilation and other basic installations.
A selection of the Wibe products have proven excellent fire resistance properties. You can feel confident when installing Wibe cable ladders in environments requiring either E30, E60 or E90 certification.
The cable ladders with supporting system and Dätwyler Pyrofil KERAM E30, E60 and E90 cables were tested for 90 minutes in a temperature of up to 1000ºC without collapsing, with the electrical performance still remaining intact.
For installation specification please see the Technical part in the catalogue.
E-30 and E-90 fire test

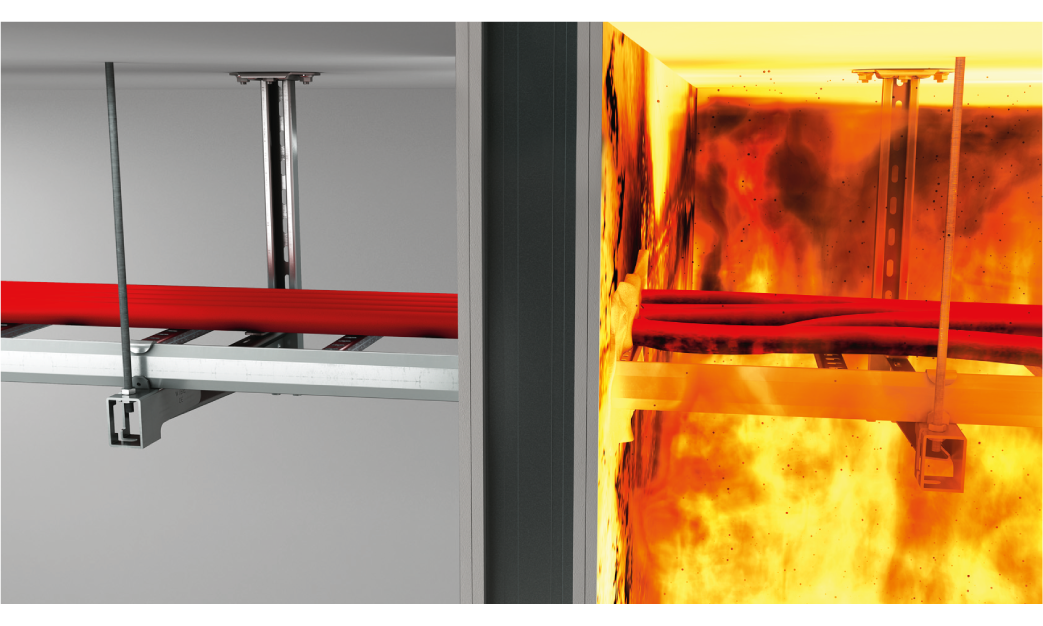

Ceiling suspended, vertical piece, cantilver arm
Ceiling suspended, support bracket, threaded rod
Test conditions
• E30 and E90 according to DIN 4102-12
• IBMB test institute
• Dätwyler Pyrofil KERAM cables
• Load 20 kg/m
• Support distance 1,5 m
